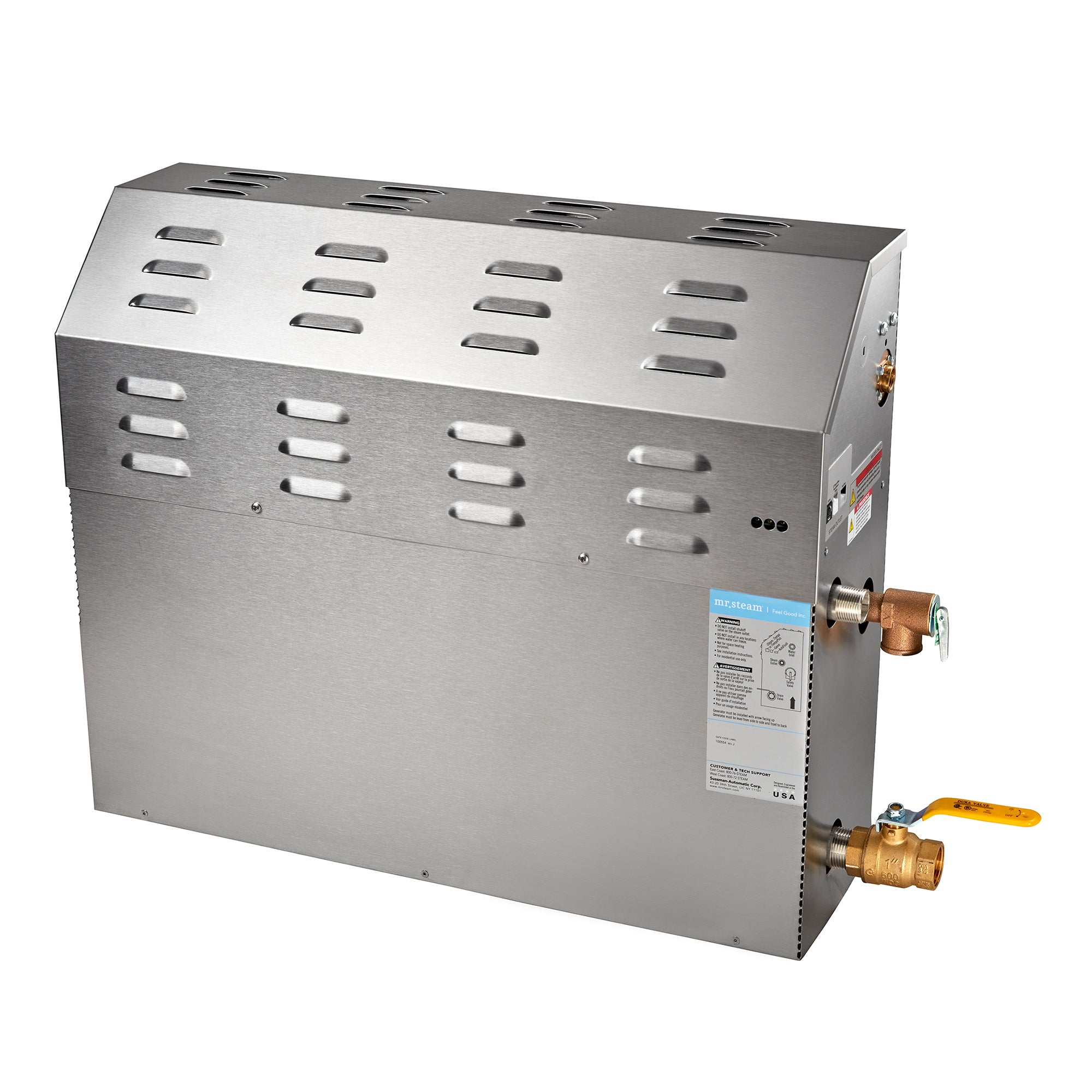

E‑SERIES MAX GENERATORS - The Intelligent Steambath®
MAX Generators are built for large residential steam shower and steam room enclosures. These units are crafted from Stainless Steel and assembled with meticulous attention to detail. Every component is designed and engineered in-house to the most exacting standards.
Features & Benefits
- Exclusive microprocessor operating system is the brains of our intelligent steam generator.
- All Mr.Steam® residential steambath MAX Generators installed in the United States or Canada qualify for a limited lifetime warranty
- Industrial grade, large diameter copper heating element heats fast and is easy to remove and service.
- Modular Plug and Play connections for easy installation of spa therapy accessories or components such as AromaTherapy, ChromaTherapy, MusicTherapy, Steamlinx, and more.
- Naturally corrosion resistant, 100 percent recyclable stainless-steel tank.
- LED indicators to help you troubleshoot any connection and maintenance challenges.
- US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety.
- 60 Minute electronic countdown shutdown with 75-minute limiting safety back-up.
- Electronic water-level control system and full-port drain valve.
- Built-in, low-voltage 24-volt control and ASME safety valve.
- Construction Material: Stainless Steel
- Generator (DRAIN Location): Right
- Generator (DRAIN Opening): 1/2 NPT
- Generator (END Connection Type): NPT
- Generator (GPC): 20kW - 2.7 GAL. | 24kW - 3.2 GAL. | 30kW - 4 GAL.
- Generator (GPM): 20kW - 0.14 GAL. | 24kW - 0.16 GAL. | 30kW - 0.2 GAL.
- Generator (LINE Fuse): 60
- Total Room Volume (cu.f t.): 20kW - 483-678 | 24kW - 679-822 | 30kW - 823-964
- Generator (PIPE Fitting & Tubing): 1/2 NPT & 3/8 NPT
- Volts: 240
- Freight Class: 70
- Temperature: 120 °F
- Amps 240/ 1PH: 20kW - 84 | 24kW - 100 | 30kW - 125
- Wire Size AWG‡: 20kW - 2 | 24kW - 1 | 30kW - 2/0
- Water Usage Gallons††: 20kW - 2.7 | 24kW - 3.2 | 30kW - 4.0
- Installation Place: Floor-Mount
- Installation Type: Hardwired
- Certifications & Listings: UL Listed; cUL Listed
Weight & Dimensions:
- Dimensions: 33 IN. X 12 IN. X 35 IN.
- Weight: 60 lbs
- Shipping Weight: 67 lbs
- Limited Lifetime Warranty (US & Canada)
Steamlinx Mobile App
Start Your Steam Shower From Anywhere In Your Home
SteamLinx lets you control essential SteamShower functionality from your smart phone or mobile device. Start and stop your SteamShower, adjust temperature and duration, all with the tap of a finger. When SteamLinx is installed, simply enable the Alexa Skill for MrSteam and you can “talk” to your steam shower. Compatible with MS Generators serial numbers 1174000 and higher.
