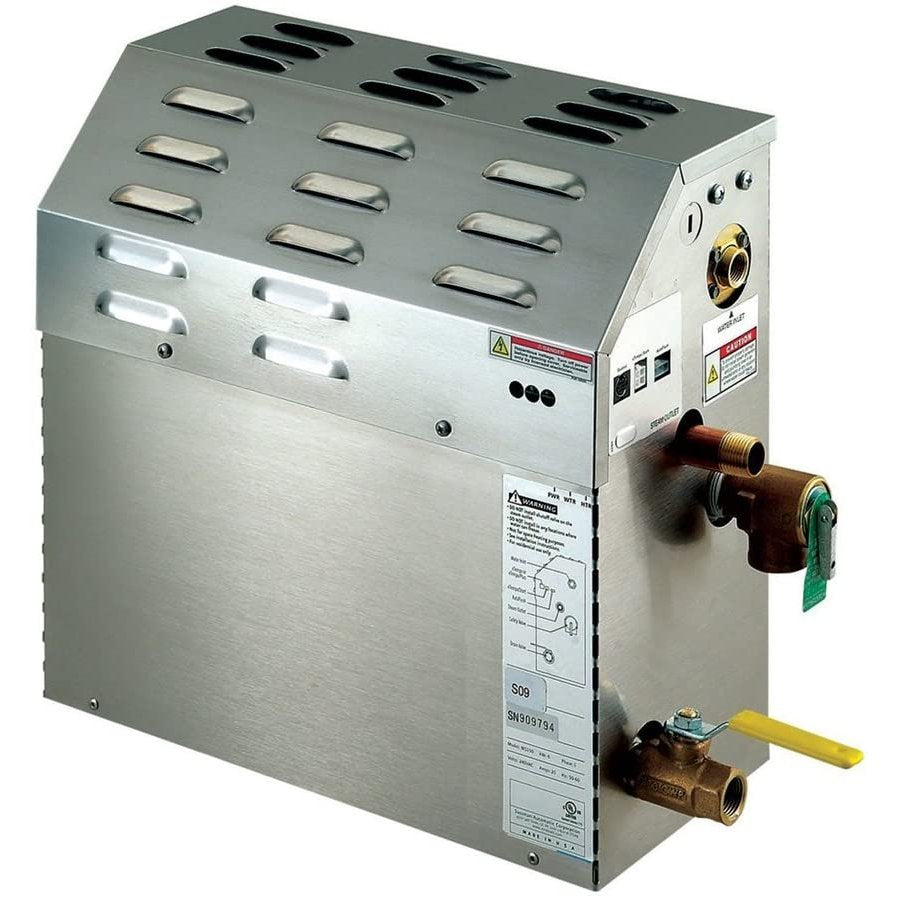

E‑SERIES GENERATORS - The Intelligent Steambath®
eSeries Generators are crafted from recyclable Stainless Steel and assembled with meticulous attention to detail. Designed, engineered and assembled in Long Island City, NY to the most exacting standards, our generators are clean, green, virtually silent, and ultra-efficient.
Features & Benefits
- Free from defects in materials and craftsmanship for its lifetime. Mr.Steam® will repair or replace (at its option) a Generator which fails to conform to this warranty
- Installs in areas such as a cabinet, closet, under a sealed bench or in an insulated attic
- Exclusive micro processor operating system is the brains of our intelligent steam generator
- Easily install spa therapy accessories or components such as AromaTherapy, ChromaTherapy, Steamlinx, and more
- LED indicators to help you troubleshoot any connection and maintenance challenges
- Naturally corrosion resistant, 100 percent recyclable Stainless Steel inside and out
- Designed to save water and energy. Uses less than two gallons of water vs 40 gallons for an ordinary bath
- 60 minute automatic cutoff, low voltage board, designed for easy access safe service
- US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety
- Reliable, industrial grade, and the industries largest copper heating element heats fast and is easy to remove and service
- Construction Material: Stainless Steel
- Generator (DRAIN Location): Right
- Generator (DRAIN Opening): 1/2 NPT
- Generator (END Connection Type): NPT
- Generator (GPC): 5kW - 0.67 GAL. | 6kW - 0.8 GAL. | 7.5kW - 1 GAL. | 9kW - 1.2 GAL.
- Generator (GPM): 5kW - 0.03 GAL. | 6kW - 0.04 GAL. | 7.5kW - 0.05 GAL. | 9kW - 0.06 GAL.
- Total Room Volume (cu.f t.): 5kW - up to 71 | 6kW - 72-107 | 7.5kW - 108-161 | 9kW - 162-257
- Generator (PIPE Fitting & Tubing): 1/2 NPT & 3/8 NPT
- Volts: 240
- Freight Class: 70
- Temperature: 120 °F
- Amps 240/ 1PH: 5kW - 21 | 6kW - 25 | 7.5kW - 32 | 9kW - 38
- Wire Size AWG‡: 5kW - 10 | 6kW - 8 | 7.5kW - 8 | 9kW - 8
- Water Usage Gallons††: 5kW - 0.67 | 6kW - 0.80 | 7.5kW - 1.0 | 9kW - 1.2
- Installation Place: Floor-Mount
- Installation Type: Hardwired
- Certifications & Listings: UL Listed; cUL Listed
Weight & Dimensions:
- Dimensions: 21 IN. X 11 IN. X 16 IN.
- Weight: 25 lbs
- Shipping Weight: 27 lbs
- Limited Lifetime Warranty (US & Canada)
Steamlinx Mobile App
Start Your Steam Shower From Anywhere In Your Home
SteamLinx lets you control essential SteamShower functionality from your smart phone or mobile device. Start and stop your SteamShower, adjust temperature and duration, all with the tap of a finger. When SteamLinx is installed, simply enable the Alexa Skill for MrSteam and you can “talk” to your steam shower. Compatible with MS Generators serial numbers 1174000 and higher.
